Description

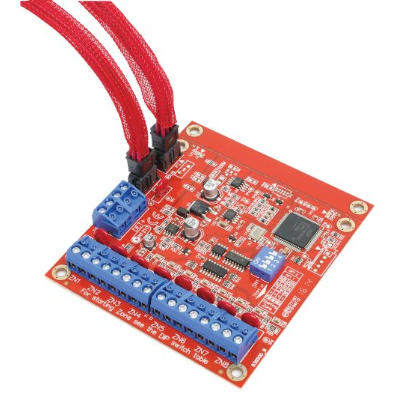

The UniBus 8 input expander connects to an Integriti Security Controller (ISC), 8 zone expander or 16 zone expander module via the UniBus port. It provides an additional 8 zone inputs that support all Integriti zone types including multistate and counter types along with extra detector power supply connections (DET+) to simplify device wiring.
The UniBus 8 input expander is designed for installation within the same enclosure as its UniBus host module.
Features
- 8 Universal Zone Inputs
- Support for Multistate EOL circuits
- Support for counter type inputs
- Programmable de-bounce times
- DIP switch addressable first zone 1, 9, 17 or 25
- UniBus loop-through connectors
- 4 Way DET+ 13.75V outputs
- 2 LED status / fault indicators
- Surge protected inputs
- Over-The-Wire firmware upgradable
- Integriti ‘C’ size footprint 94 x 94mm
- This module requires a UNIBUS host (LAN expander – IR-996005PCB&K) when using Inception.
