Description
Model: 60-639-43-EUR

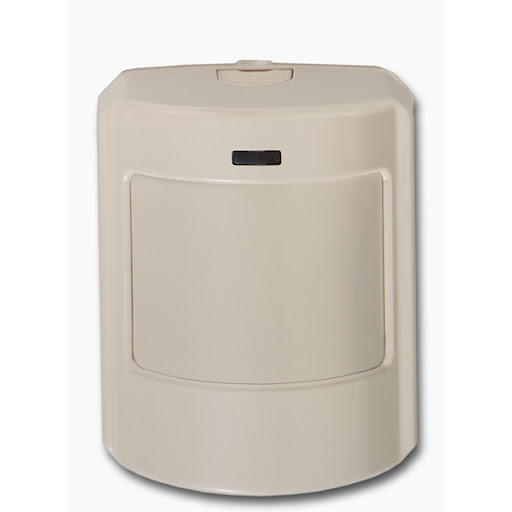

The wireless passive infrared motion sensor 60-639-43-EUR is designed to detect moving objects within a protected area and is set in a place where there is no possibility to carry out the wiring.
Without the need for wires, the PIR motion detector can be placed where ever it is not practical to install door/window sensors on every opening.
The hotel design, the sensors are ideal for any decor.
Key Features:
- Compatible with 433 Mhz receivers and control panels
- Passive infrared detector : 11 x 12 m
- 3-minute transmitter lock out timer after an alarm (extends battery life)
- Special walk test mode after tamper activation (60 sec.)
- Tamper switch (opening/removal)
- Supervisory signal transmitted every 64 minutes
- Standard/high sensitivity setting
Specifications:
- Power source: two 1.5 Vdc AA alkaline batteries
- Battery life (typical): 3-4 years
- Transmit range: 150 m (open air)
- Interval supervisory signal transmission: 64 minutes
- Range PIR: 11 x 12 m
- Sensitivity setting: 2 levels (standard/high)
- Tamper switch: detection of opening and removal
- Operating temperature: 0° to 50°C
- Weight: 0.128 kg (incl. batteries)
- Housing Colour: off-white
Power safe features:
- Transmitter lock out time: 3 minutes after an alarm
- Special walk test mode: 60 sec. (after tamper activation)
