Description

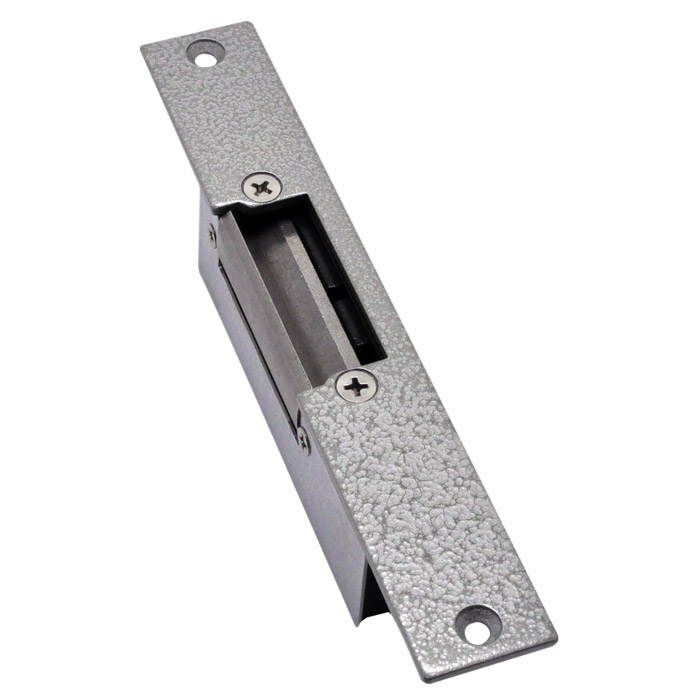

The Watchguard ACLOC100 is a strong, mortise mount, electric door strike for use with access control systems. It features a durable steel faceplate and is configured in fail-secure mode in the event of power loss.
*For indoor use only.
Specifications
General
Type Mortise Mount
Door Latch 9.5mm
Keeper Depth 9.6 mm
Construction Steel
Lock Configuration Fail secure
Lock Status Sensor No
Environmental
Power input 12VDC at 400mA

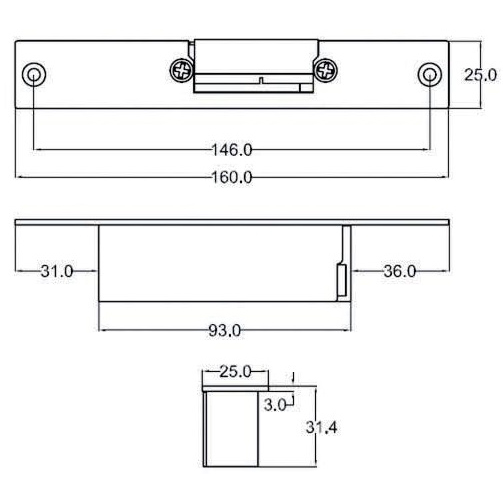

Faceplate Dimensions 160 x 25 x 3mm
Overall Dimensions 160 x 25 x 30.8mm
Warranty (Years) 3
Shipping Weight and Dimensions
Includes product packaging
Width 40 mm
Height 170 mm
Depth 30 mm
Weight 0.28 kg
