Nearity Nearhub Air – Wireless decoder

DC12V/1.5A; maximum resolution 1920×1080; 100Mbps network port; USB type c can be connected to the computer as a standard USB docking station

SKU: SE-NEA-AIR
Tags:
Category: ,

Description

Nearhub Air is a wireless decoder developed by Nearity, used with Nearhub Tail as a wireless screen receiving. It can also be connected to Nearity’s speakermic A20S/A21S, conference camera V415 and other products, and cooperate with Nearhub Tail to realize BYOM functions. In the BYOM scenario, users can use the conference software on their computers to process meetings, use audio and video devices connected to Nearhub Air, and project the screen to the conference room screen.

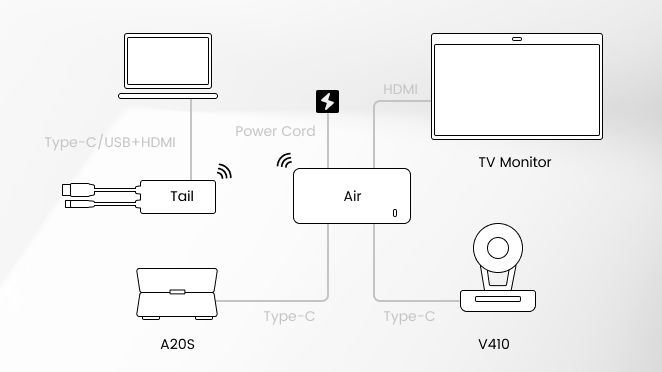

/Solutions/ByomSystem/Bsolution/2.png
Nearhub Air/Tail simplifies the way to start conference room meetings. When you walk into a conference room, it connects you to devices like cameras, speakerphones, and displays, allowing users to quickly start a meeting from their laptop in seconds with their preferred video conferencing platform.

Line in ×1

  • Audio input interface
  • 3.5mm port
  • single input
  • support stereo audio

Line out ×1

  • Audio output interface
  • 3.5mm port
  • single output
  • support stereo audio

RJ45×1

  • 100Mbps network port
  • support transmission of network audio and video data streams and network data.

HDMI out ×1

  • video output
  • maximum resolution 1920×1080

Reset button

  • For factory reset

USB (Mic/Camera) ×2

  • The TYPE C port is used to connect USB peripherals*
  • such as the A20S, V415.

USB-C ×1

  • USB type c can be connected to the computer as a standard USB docking station

Wifi

  • IEEE802.11a/b/g/n/ac/ax
  • AP and WiFi can work simultaneously

Codec

  • USB: H.264, MJPEG, YUY2
  • Network: H.264, H.265

Protocol

  • USB UVC1.0/UAC2.0

OS requires

  • Windows7, windows8.1, windows10, Mac OS10.10 or higher

LED Indicator

  • Blue

Power

  • DC12V/1.5A
