Description

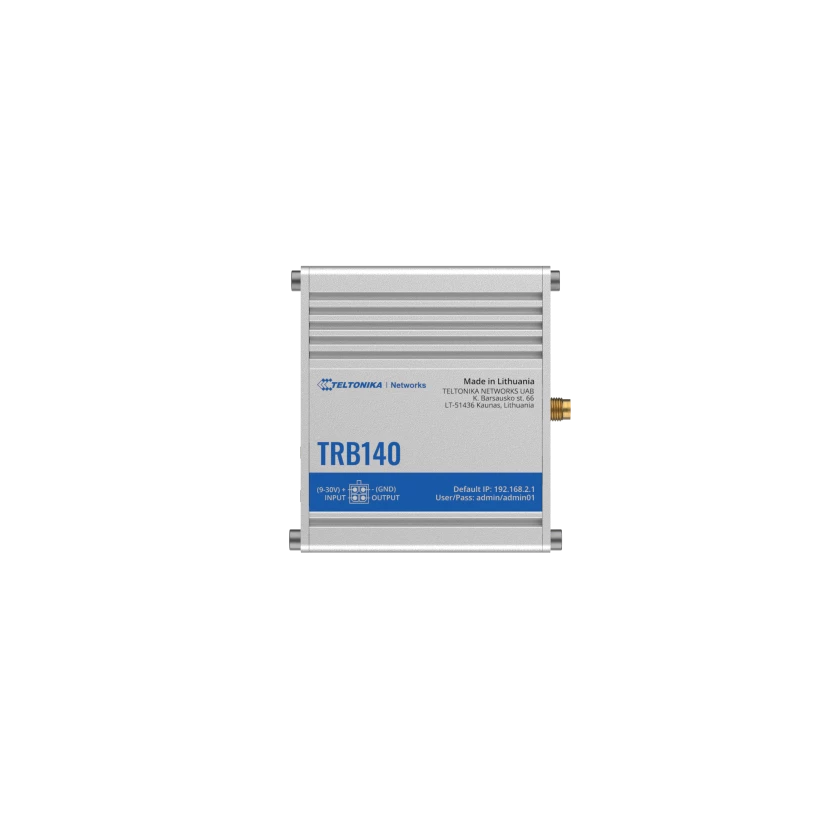

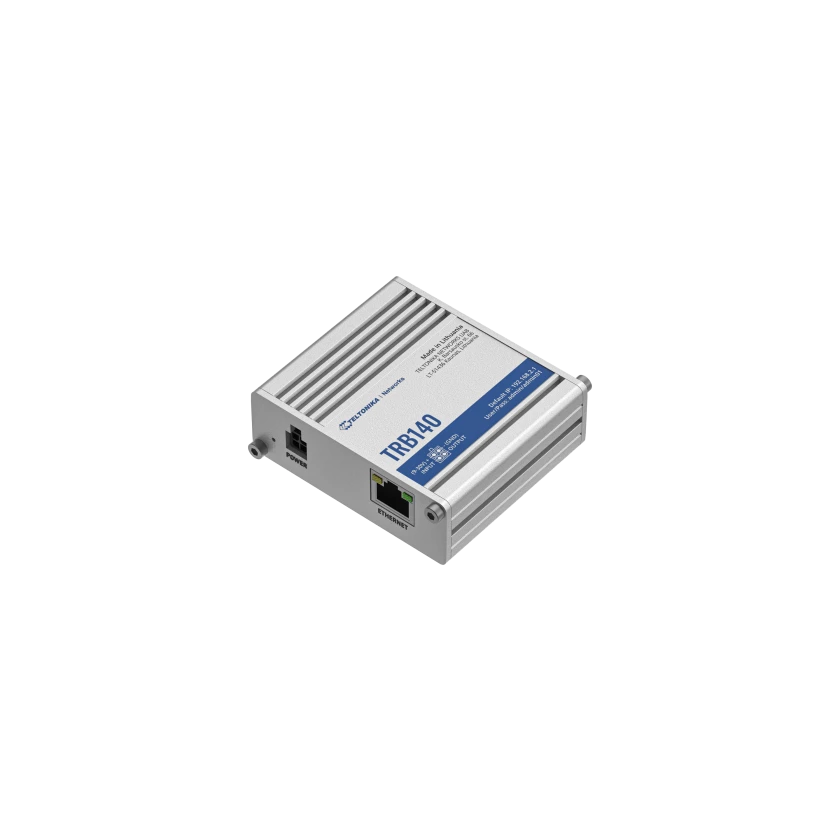

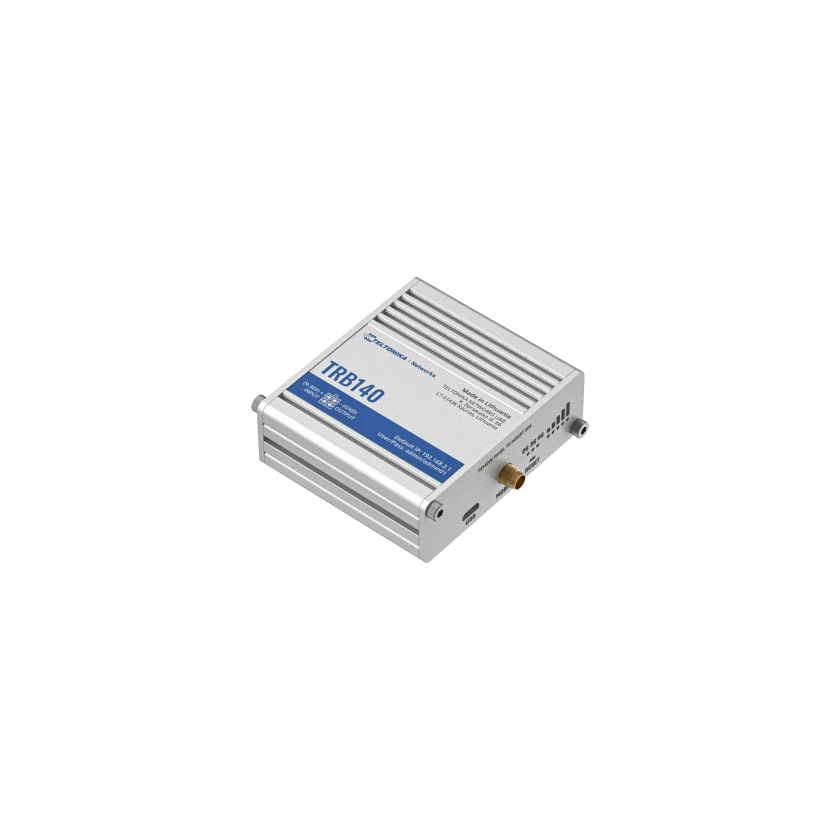

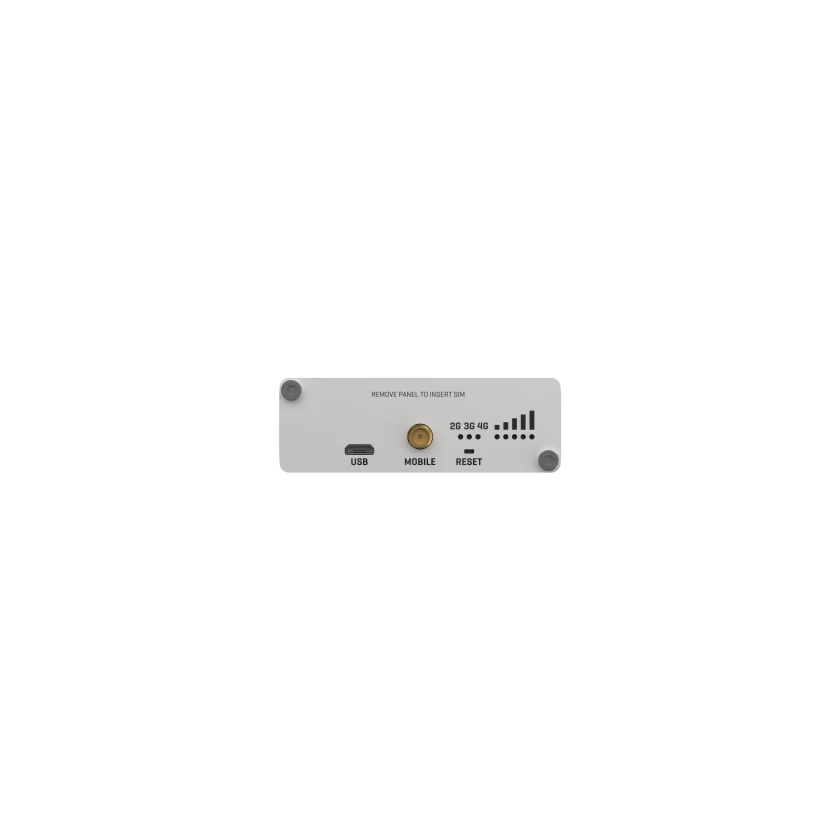

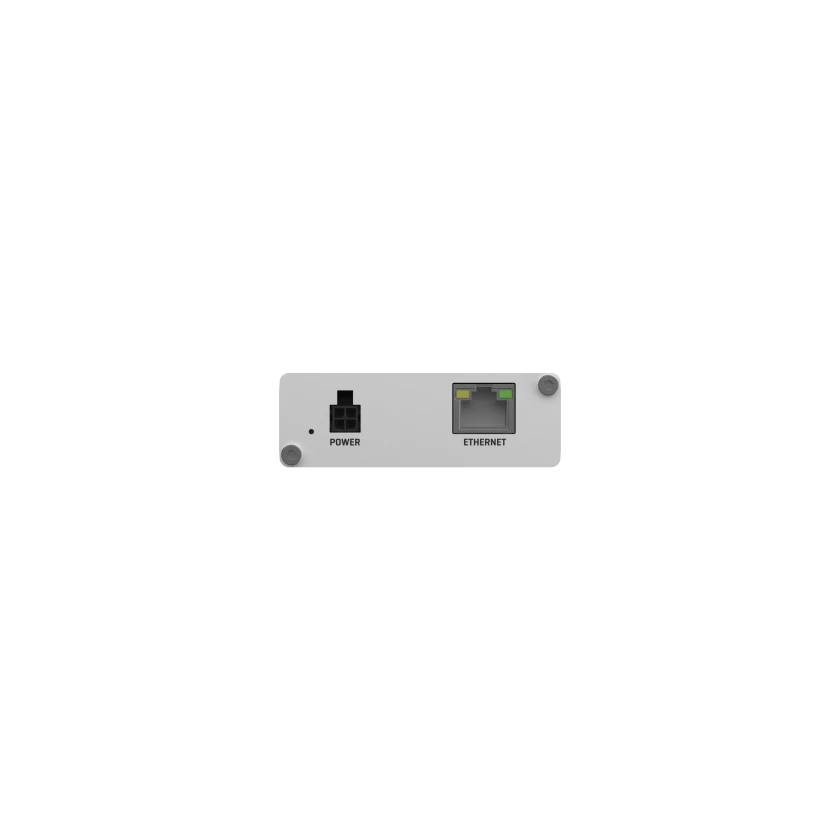

Model: TRB140
TRB140 is an ultra-small, lightweight, and energy-efficient IoT device with mission-critical LTE Cat 4 and Gigabit Ethernet connectivity options. Linux environment offers a high degree of customization. This gateway is perfect for projects and applications where a single device must be upgraded with reliable and secure internet connectivity.
Features:
Mobile
-
Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
-
3GPP Release: Release 11
-
Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
-
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
-
USSD: Supports sending and reading Unstructured Supplementary Service Data messages
-
Black/White list: Operator black/white list (by country or separate operators)
-
Multiple PDN: Possibility to use different PDNs for multiple network access and services
-
Band management: Band lock, Used band status display
-
SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
-
APN: Auto APN
-
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
-
Passthrough: Gateway assigns its mobile WAN IP address to another device on LAN
Ethernet
-
ETH: 1 x ETH port, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
