Description
Model: OTD140

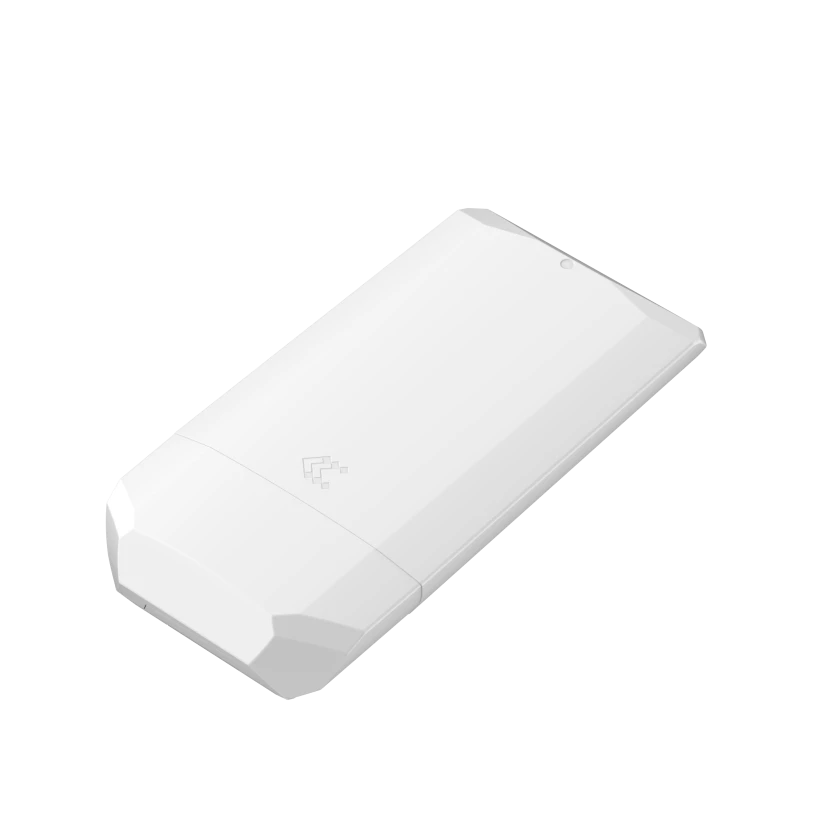

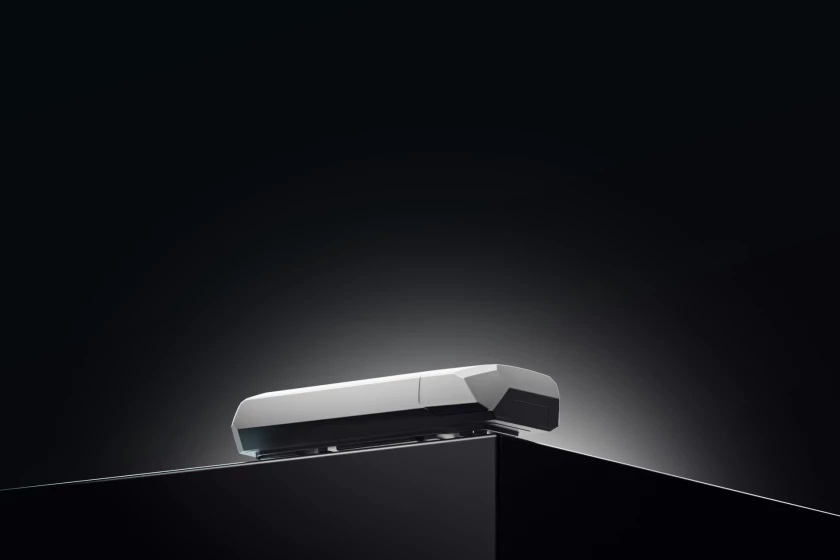

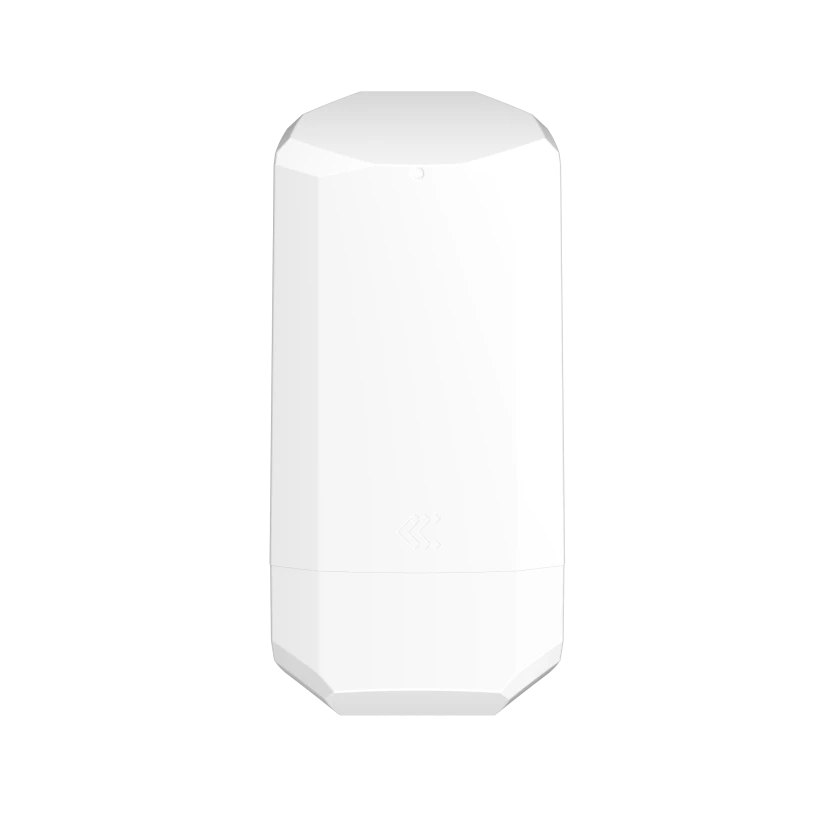

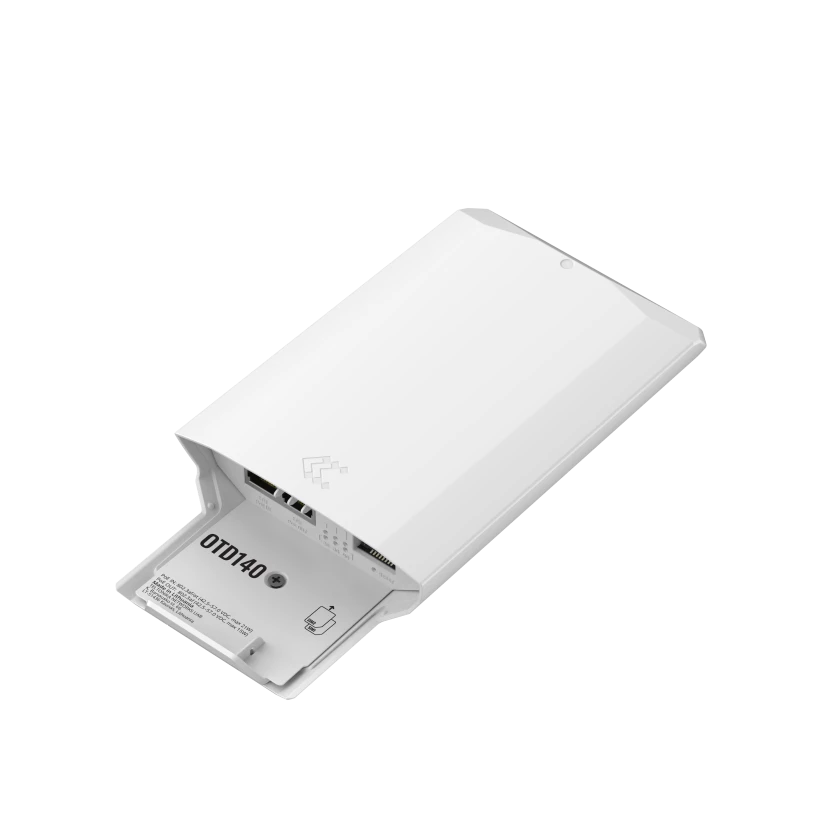

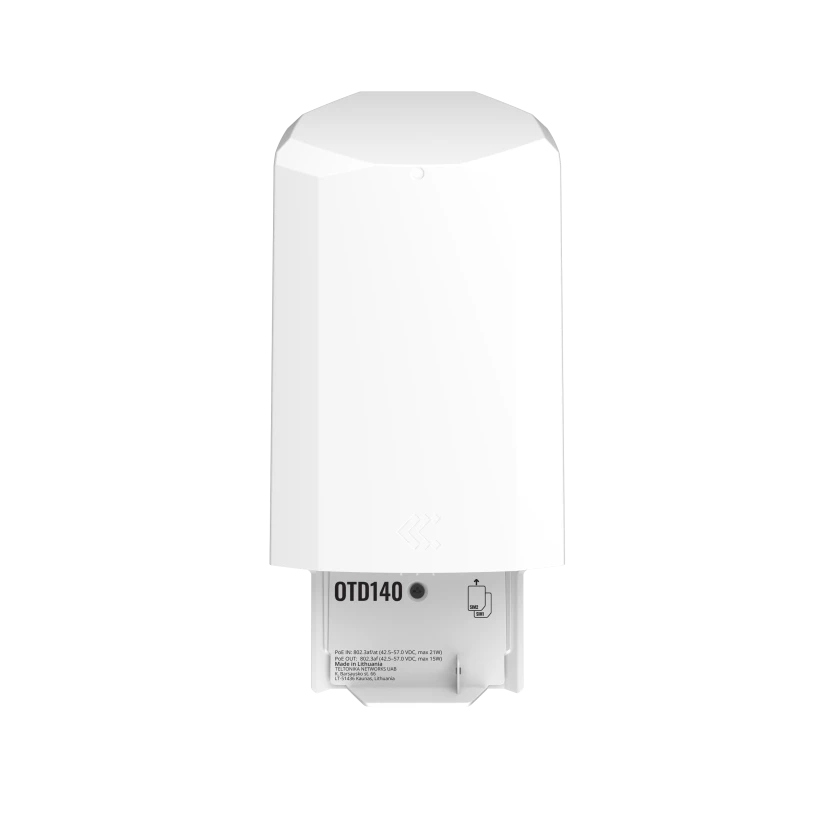

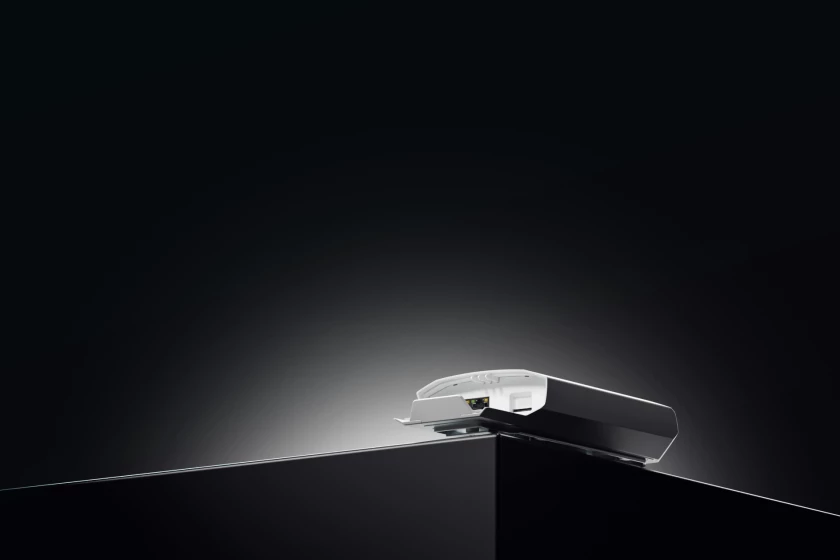

The OTD140 outdoor router features a dedicated and durable IP55 plastic housing and an integrated mounting bracket, making this outdoor 4G router easy to deploy and capable of withstanding outdoor environmental conditions. Beyond that, this outdoor router is equipped with LTE Cat 4 connectivity, compatibility with RMS for remote management capabilities, and two PoE-in/out Ethernet ports.
Features:
Mobile
-
Mobile module: 4G LTE up to 150 DL/50 UL Mbps; 3G up to 21 DL/ 5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps
-
3GPP Release: Release 9
-
SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
-
Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
-
SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
-
USSD: Supports sending and reading Unstructured Supplementary Service Data messages
-
Black/White list: Operator black/white list (by country or separate operators)
-
Band management: Band lock, Used band status display
-
SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card’s PIN
-
APN: Auto APN
-
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
-
Passthrough: Router assigns its mobile WAN IP address to another device on LAN
Ethernet
-

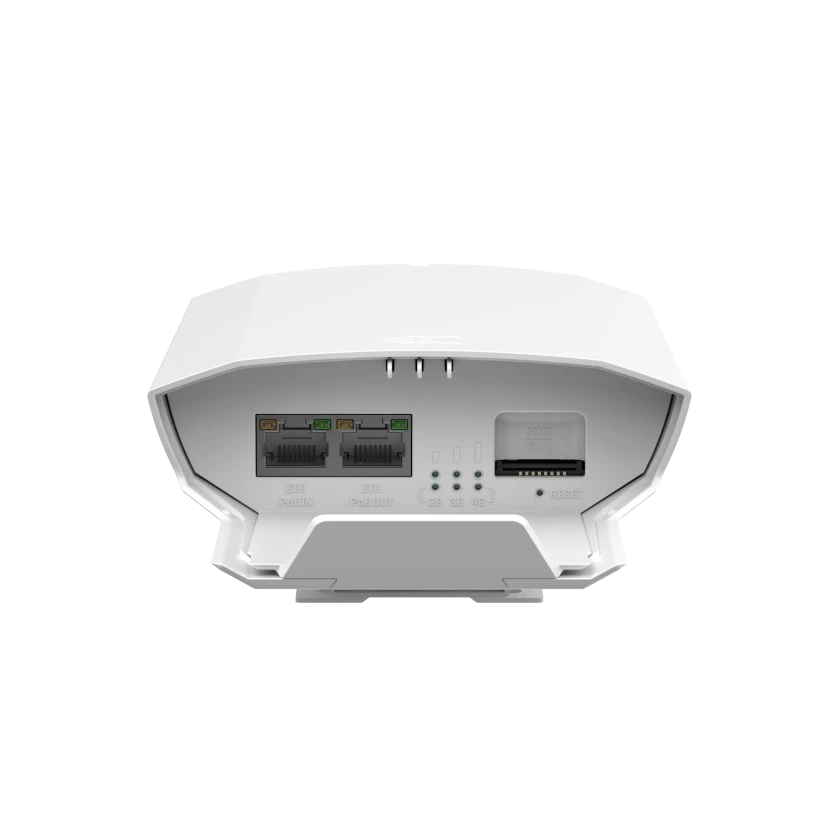

LAN: 2 x ETH ports (can be configured as WAN), 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network
-
Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
-
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
-
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
-
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
-
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
-
Firewall status page: View all your Firewall statistics, rules, and rule counters
-
Ports management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
-
Network topology: Visual representation of your network, showing which devices are connected to which other devices
-
DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
-
QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
-
DDNS: Supported >25 service providers, others can be configured manually
-
DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
-
Network backup: VRRP, Wired options, each of which can be used as an automatic Failover
-
Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
-
SSHFS: Possibility to mount remote file system via SSH protocol
-
Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history
